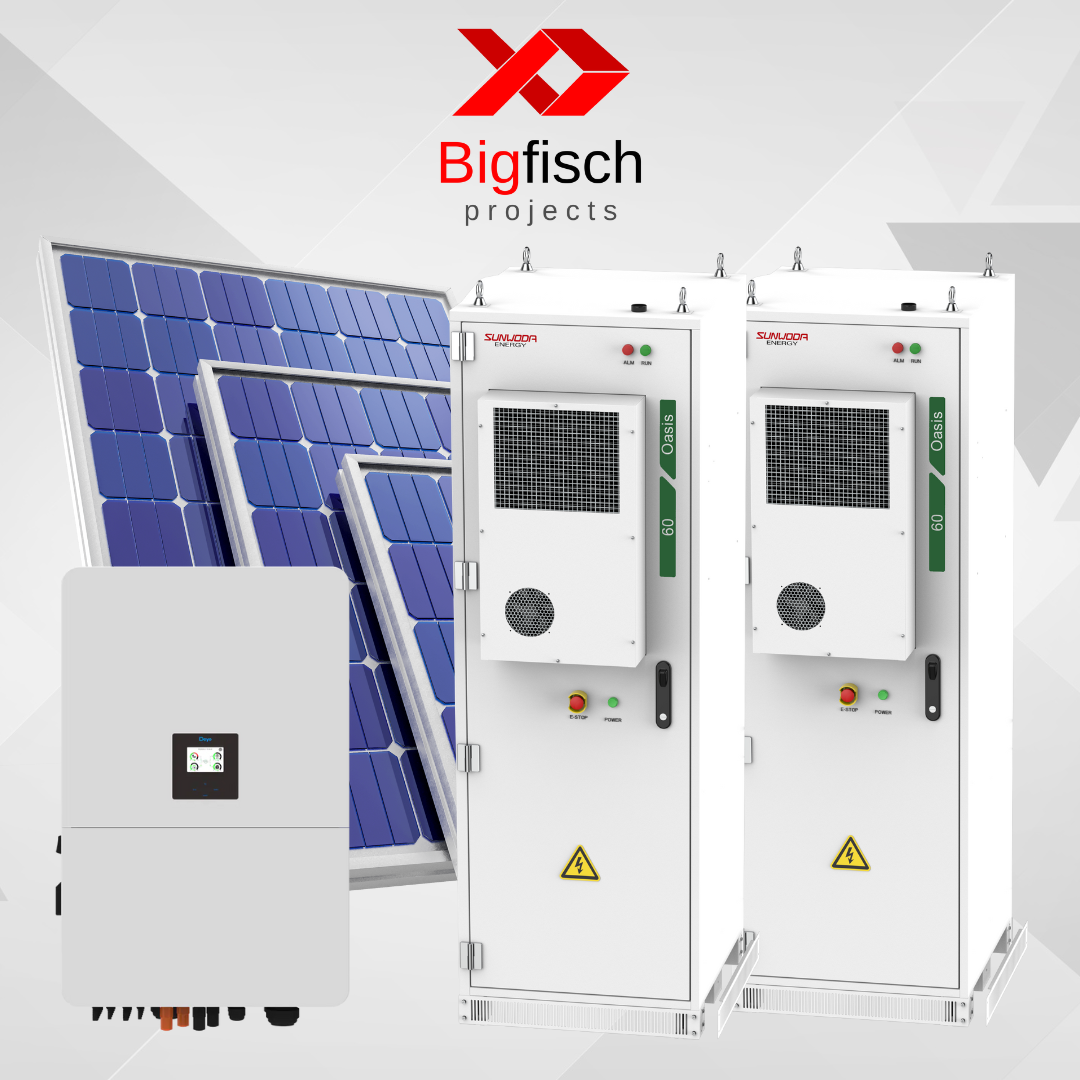

Commercial Solar System: 50kW Inverter + 120kWh Lithium Battery + 104 x Solar Panels

What's included in the package?

• 1 x 50kW Hybrid 3 Phase High Voltage Inverter
• 2 x 60kWh Lithium Battery
• 104 x Tier 1 Solar Panels

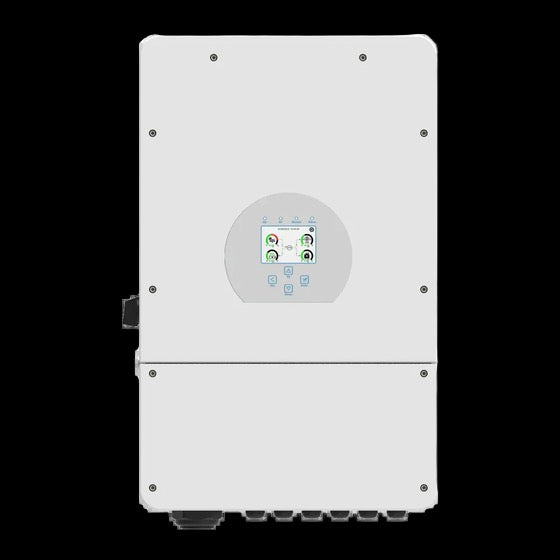

1 x 50kW Hybrid 3 Phase High Voltage Inverter: Converts DC electricity into alternating current (AC) electricity for immediate use. Data Sheet

• 100% unbalanced output, each phase
• AC couple to retrofit existing solar system
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• Connect to a high voltage battery, higher efficiency
• Support storing energy from diesel generator

• 6 time periods for battery charging/discharging

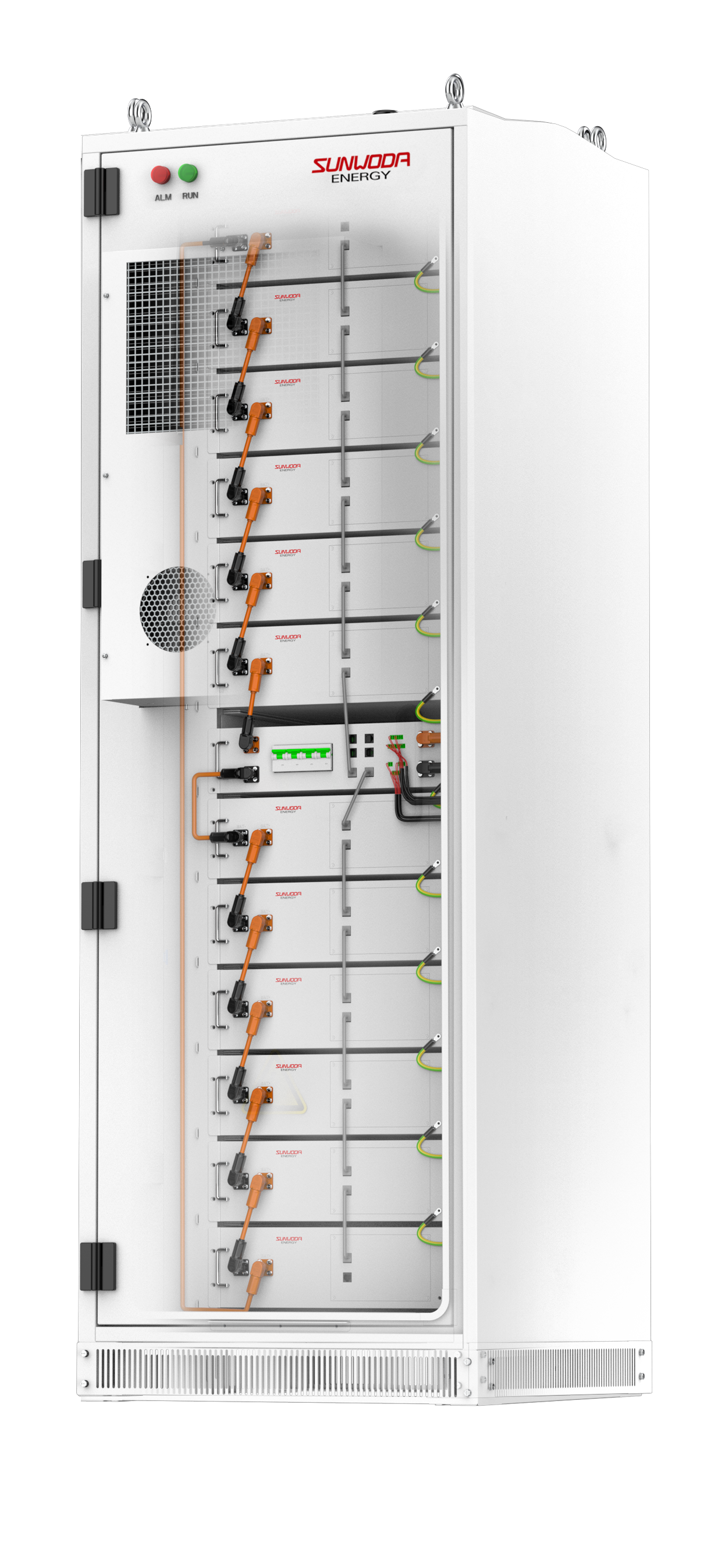

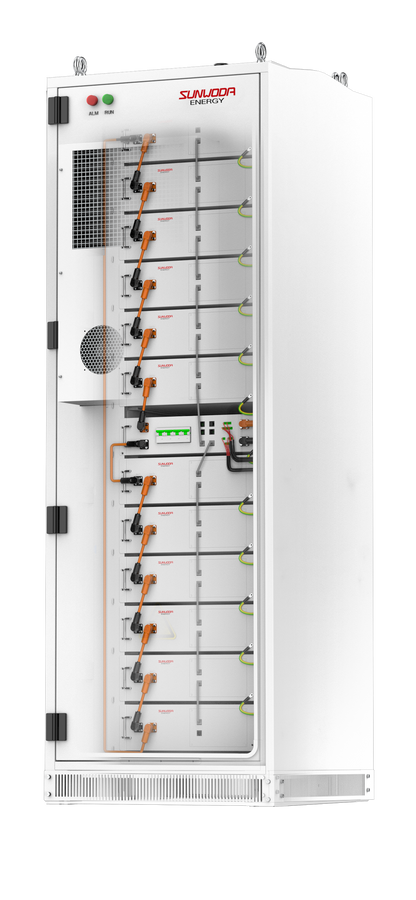

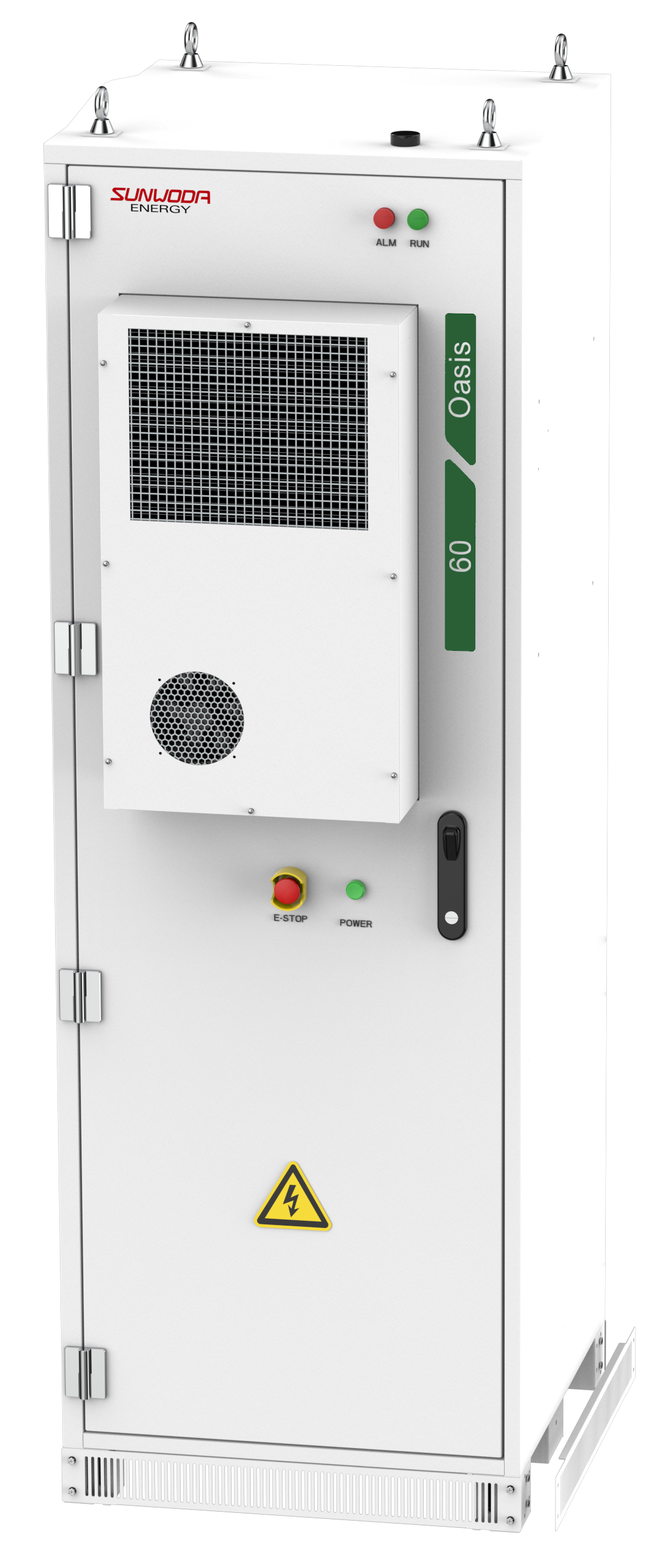

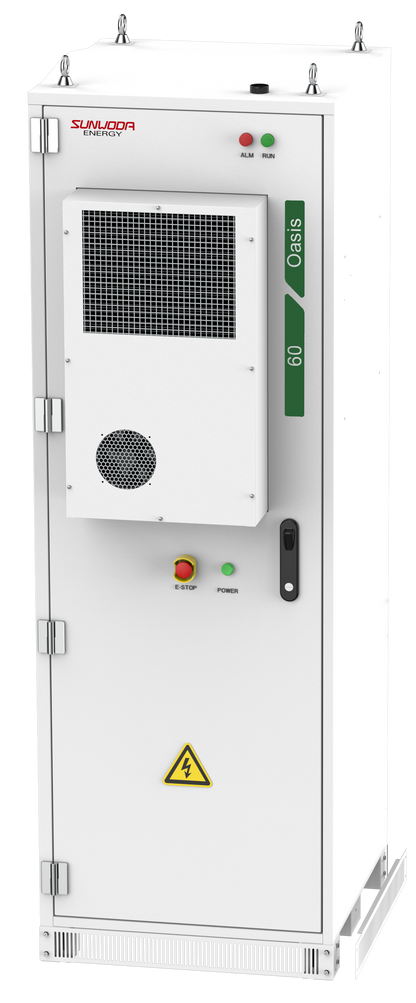

2 x 60kWh Lithium Battery: Comprising Store excess solar energy for backup power during cloudy days or at night. Data Sheet

• 100%DOD - Discharge depth up to 100% to maximize economy
• ＜0.6㎡ A single cabinet covers an area of less than 0.6㎡
• 6000 cycles 60~360kWh Supports parallel capacity expansion, DC combiner is not needed
• Remote Operation and Maintenance Support cloud operation and maintenance, supports Wifi, network cable and other communication methods

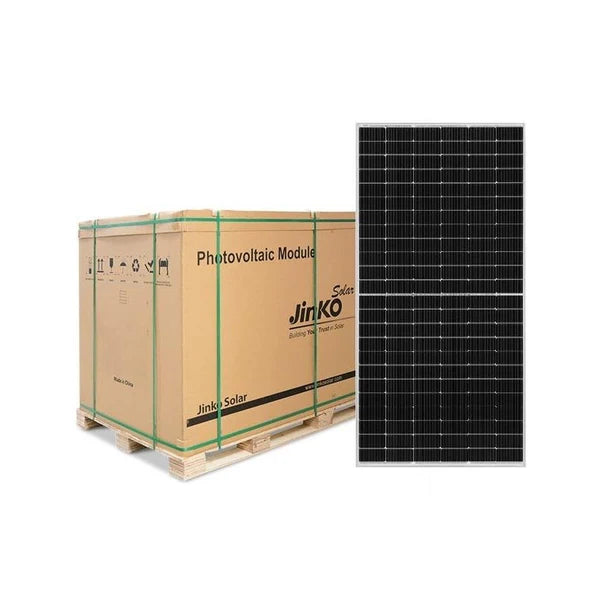

104 x Tier 1 Solar Panels (PV Modules): to absorb sunlight and convert it into direct current (DC) electricity. Data Sheet

• N-type Technology modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance.
• Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE
• Certified to withstand: 5400 Pa front side max static test load / 2400 Pa rear side max static test load.
• Anti-PID Guarantee; Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
