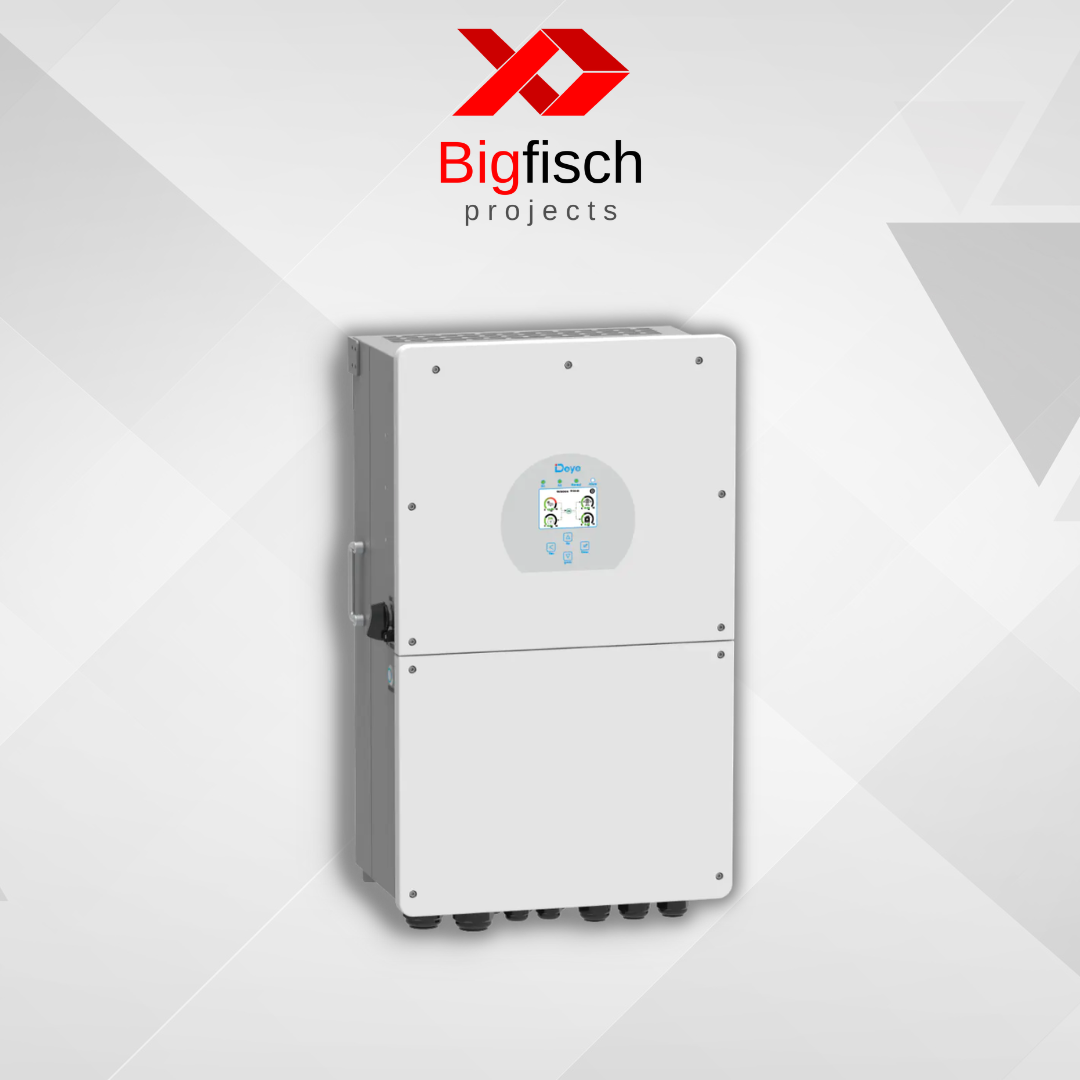

Deye 12kW 1Ph Hybrid Inverter

The Deye 12kW single phase hybrid inverter is a powerful device designed for large residential and small commercial solar systems.

Data Sheet

It combines solar power generation, battery storage, and grid connectivity, supporting both on-grid and off-grid applications.

This inverter allows for efficient energy management, storing excess solar energy in batteries and ensuring a reliable power supply even during outages.

With features like remote monitoring, high efficiency, and smart energy management, the Deye 12kW hybrid inverter optimizes solar energy use and enhances energy independence.

General Data

• Colorful touch LCD with IP65 Protection Degree
• AC Couple to retrofit existing Solar System
• Maximum 16 Units Parallel for On-Grid and Off-Grid operation
• Supports Multiple Batteries in Parallel
• Maximum Charging / Discharging Current of 290A
• 6 Time Periods for Battery Charging / Discharging
• Support for storing Energy from Diesel Generator
• Self-Consumption and Feed-In to Grid
• Auto Restart while AC is recovering
• Programmable Supply-Priority for Battery or Grid
• Programmable multiple operation modes: On-Grid, Off-Grid and UPS
• Configurable Battery Charging: Current / Voltage based on applications by LCD Setting
• Configurable AC / Solar / Generator Charger priority by LCD Setting
• Compatible with Mains Voltage or Generator Power
• Overload / Over Temperature / Short Circuit protection
• Smart Battery Charger design for optimized Battery performance
• Limit Function to prevent excess power overflow to the Grid
• Supports WIFI monitoring and 2 Strings of each MPPT
• Smart settable three stages MPPT Charging for optimized Battery performance
• Time-Of-Use Function
• Smart-Load Function

Grid/AC Output

• Grid Type: Single Phase
• Protection Degree: IP65
• Maximum Charge/Discharge Current: 240A
• Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
• AC Output & UPS Power: 12000W
• Maximum AC Output Power: 13200W
• AC Output Rated Current: 54.5/52.2
• Maximum AC Current: 60/57.4
• Maximum Efficiency: 97.60%

PV Input

• Maximum DC Input Power: 19200W
• Max. PV Input Voltage: 500V
• Rated PV Input Voltage: 370V
• 3/2 x MPPT
• Start-up Voltage: 125V
• PV Input Current: 26A + 26A + 26A

Battery

• Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
• Battery Voltage Range: 40-60V
• Communication with BMS: CAN/RS485
