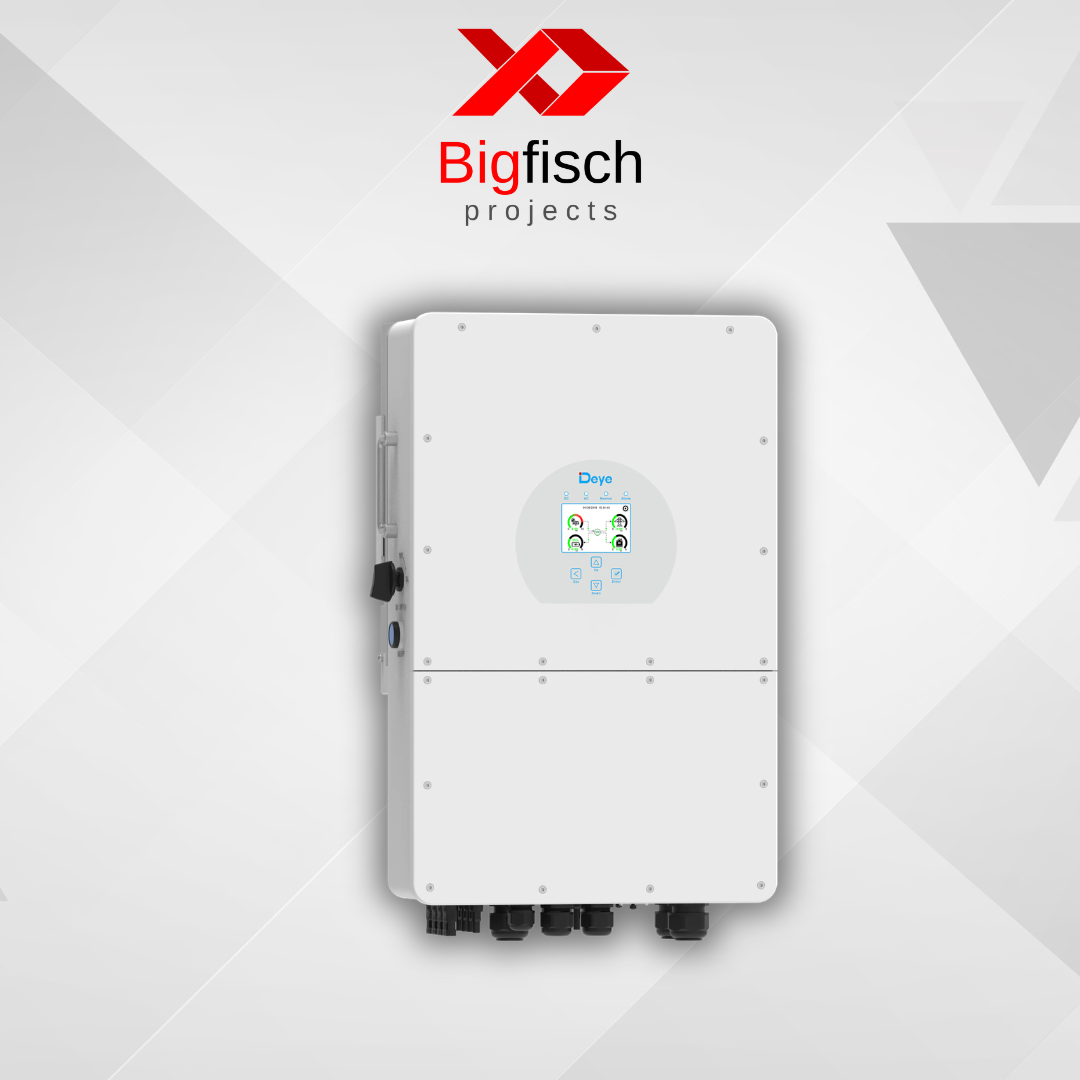

Deye 20kW 3Ph HV Hybrid Inverter

This Deye 20kW Hybrid Inverter is a high voltage 3 Phase inverter which must be paired with a high voltage battery bank.

Data Sheet

Deye is renowned for its reliable and safe products, ensuring continued productivity in the commercial sector with the use of Solar Power and battery backup (sold separately).

The Deye 20kW Hybrid Inverter is user-friendly and equipped with an intelligent monitoring platform, allowing you to shut down immediately in the event of an accident remotely.

The Smart Monitoring Platform allows users to quickly and remotely set parameters and perform firmware updates.

Advanced hybrid functionality, efficiently integrates solar power generation, battery storage, and grid interaction, providing a reliable, scalable, and flexible energy management system.

Battery Input Data

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range(V):150~700V
• Max. Charging Current (A): 37
• Max. Discharging Current (A): 37
• Number of battery input: 1
• Charging Curve: 3 Stages / Equalization
• Charging Strategy for Li-Ion Battery: Self-adaption to BMS


PV String Input Data

• Max. DC Input Power (W): 26000W
• Max. DC Input Voltage (V): 1000
• Start-up Voltage (V): 180
• MPPT Range (V): 150V-850V
• Full Load DC Voltage Range (V): 500-850
• PV Input Current (A): 26A+26A
• Max. PV ISC (A): 39A+39A
• Number of MPPT / Strings per MPPT: 2/2


AC Output Data

• Rated AC Output and UPS Power (W): 20000W
• Max. AC Output Power (W): 22000W
• Peak Power (off grid): 1.5 times of rated power, 10 S
• AC Output Rated Current (A): 30.3
• Max. AC Current (A): 35
• Max. Continuous AC Passthrough (A): 80A
• Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
• Grid Type: Three Phase
• DC injection current (mA): <0.5%1n

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%


Protection

• PV Input Lightning Protection: Integrated
• Anti-islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output Over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Surge protection: Integrated
• Output Over Voltage Protection: DC Type II / AC Type II


Certifications / Standards

• Grid Regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
• Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


General Data

• Model Number: SUN-20K-SG01HP3-EU-BM4
• Operating Temperature Range (℃): -40~60℃, >45℃ Derating
• Cooling: Smart cooling
• Noise (dB): <45 dB
• Communication with BMS: RS485; CAN
• Weight (kg): 26
• Size (mm): 434W×645H×245D
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

Versatility:

• 100% unbalanced output, each phase
• Max. charging/discharging current of 50A
• Support storing energy from diesel generator
• Max. 10 pcs parallel for on-grid and off-grid operation
• Supports multiple batteries parallel
• AC couple to retrofit existing solar system
• 6 time periods for battery charging/discharging
• High voltage battery, higher efficiency



Applications:

• Use it like a Grid-Tied inverter, with solar panels only
• Use it as a Load Shedding Solution, with batteries only
• Use it in an Off-Grid situation, not connected to the grid
• Use it in an On-Grid situation, connected to the grid
• Use it as a UPS (Uninterrupted Power Supply)
• 10-Year warranty when paired with Deye batteries
