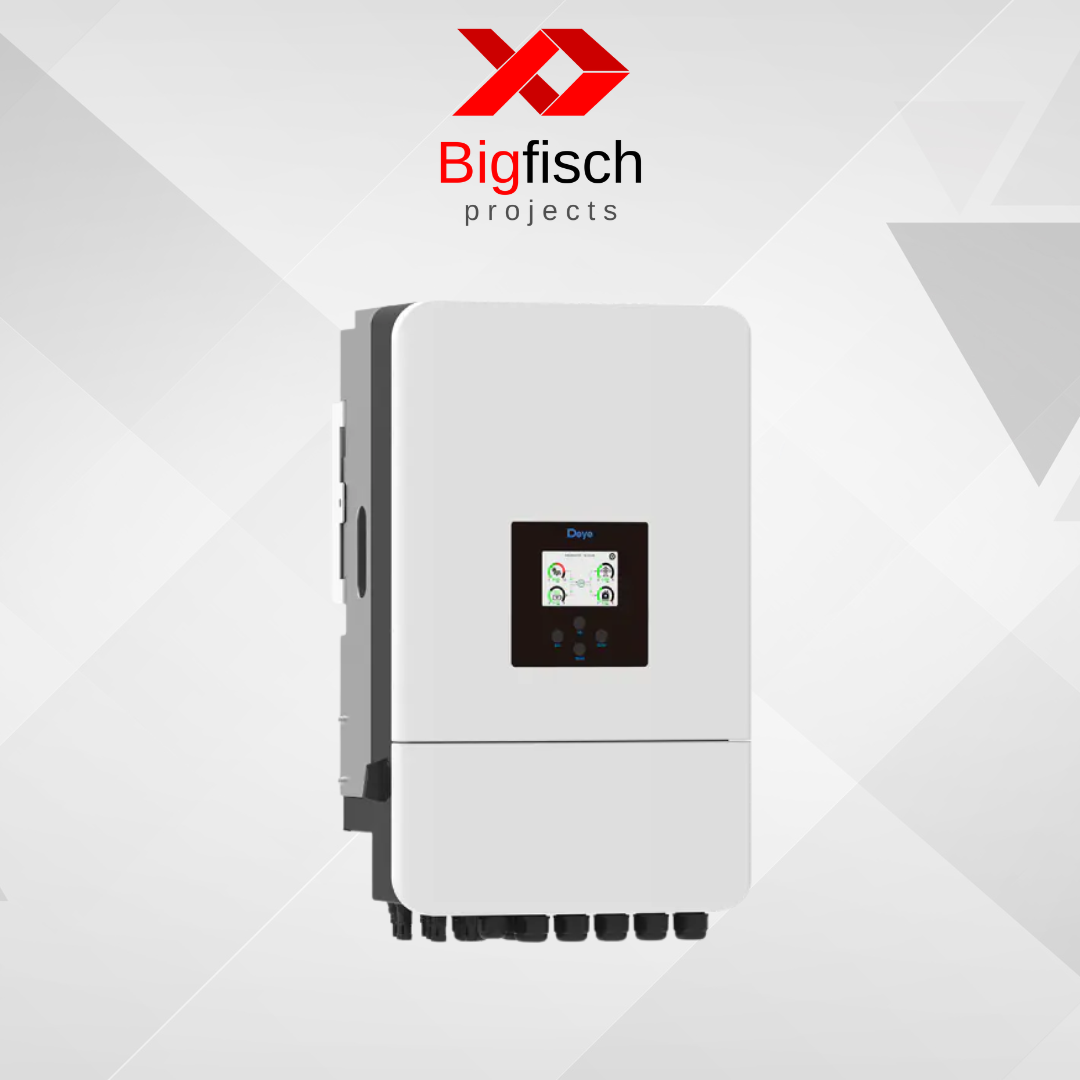

Deye 8kW Hybrid Inverter

Single Phase Hybrid Inverter

• Includes:  Wi-Fi Dongle + BMS Communication Cable
• Higher yields / Safe & Reliable / Smart / User-friendly
• Remote shutdown function

Data Sheet

Smart Monitoring Platform

Thanks to the smart monitoring platform the inverter supports remote shutdown immediately when accidents occurs. Setting parameters and firmware update remotely, which makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree
• AC couple to retrofifit existing solar system
• Max. 16 pcs parallel for on-grid and off-grid
• operation; Support multiple batteries parallel
• Max. charging/discharging current of 190A
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

Battery Input Data

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 190A
• Max. Discharging Current (A): 190A
• Charging Strategy for Li-ion Battery: Self-adaption to BMS
• External Temperature Sensor: Optional
• Number of battery input: 1
