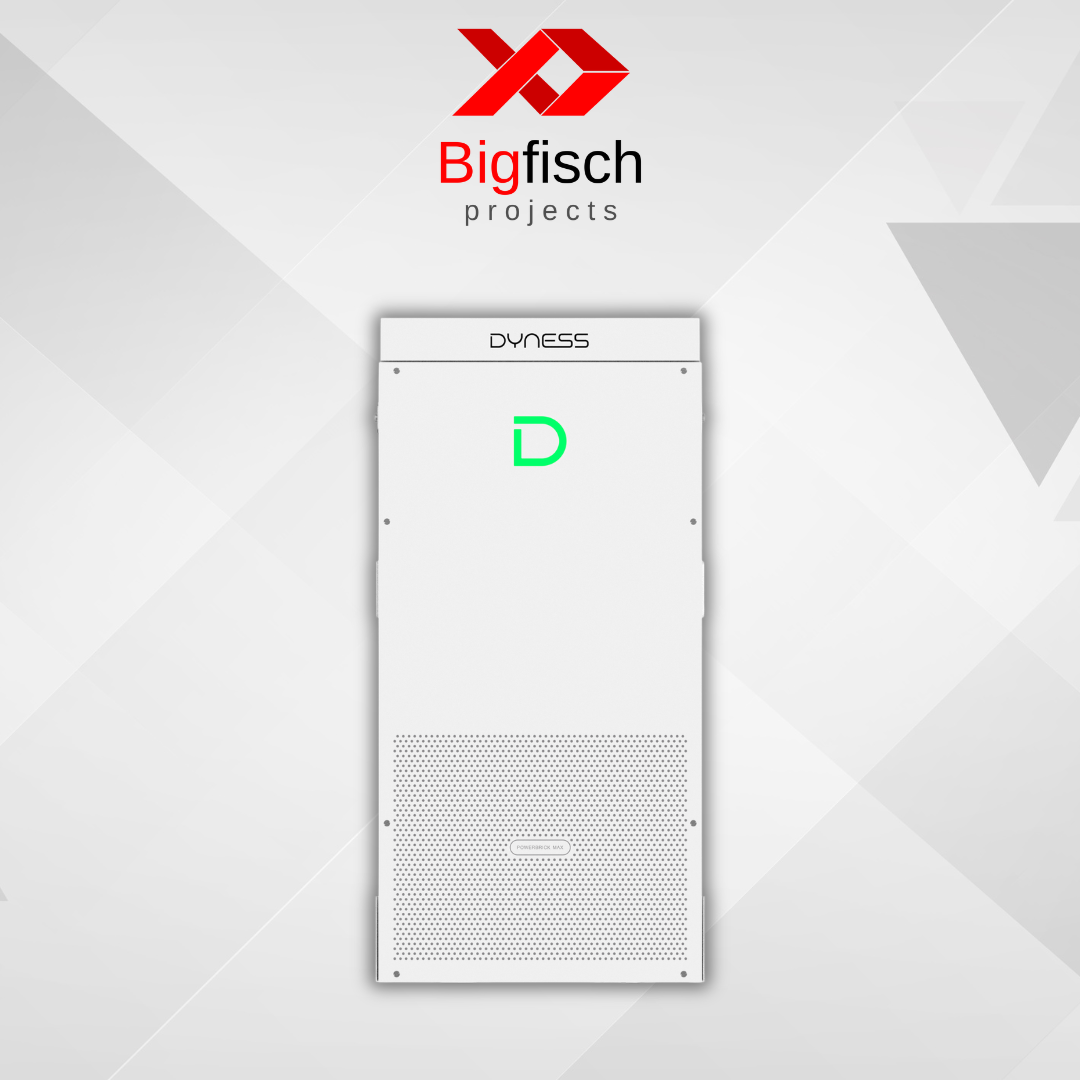

Dyness 16kW Power Brick Max Lithium Battery

PowerBrick Max is a low-voltage product designed for household energy storage scenarios with a stylish and elegant appearance. It uses a high-capacity 314Ah battery to support 50 parallel units with a capacity range from 16.07kWh to 803.5kWh. It provides a highly safe, reliable, intelligent and friendly experience.

Data Sheet

NB: Wheels and cover NOT included .

• Fast Charge/Discharge - Maximum charge/discharge current: 200A, simultaneously supplying power to multiple loads
• Flexible Expansion - Up to 50 units in parallel,16.07kWh-803.84kWh capacity
• Easy Installation - Supports wall-mounted and floor-mounted installations, easy to move by one person
• Long Term Reliability - 314Ah LFP cells, 8000+ cycles,10 years warrant

Key Features

• Battery Type - LiFePO4
• Nominal Battery Energy - 16.076kWh
• Cycle Life - ≥8000 cycles / 10 Years
• Protection Level - IP20
• Net Weight - 116Kg
• Dimension[W*D*H] - 435*233*857mm
• Maximum Parallel Modules - 50
