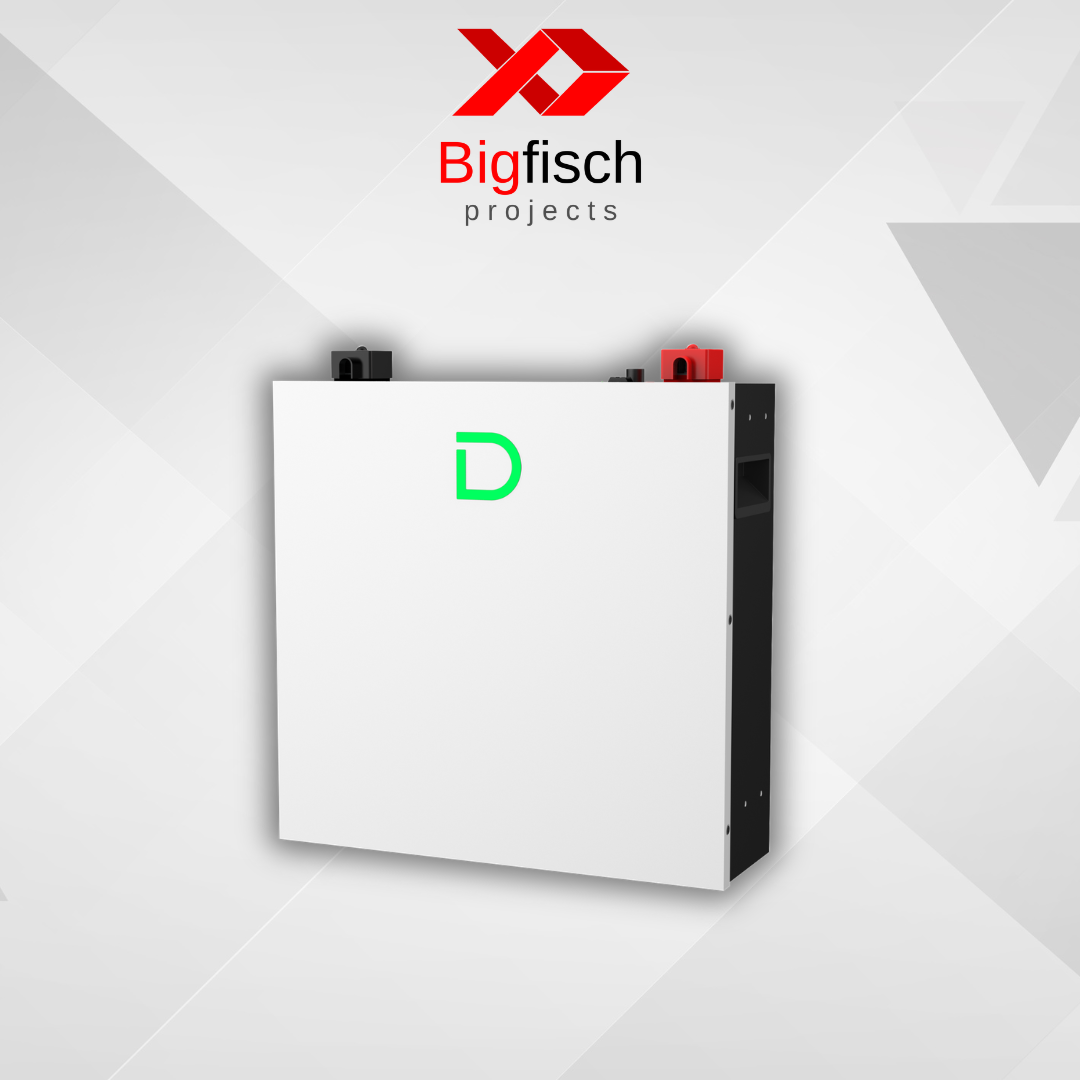

Dyness DL5.0C 5.12kWh Lithium Battery

The Dyness DL5.OC has a 10 year warranty, it is suitable for residential and small commercial or industrial applications, up to 50 units can be connected in parallel, an energy range from 5.12 kWh up to 256 kWh.

Data Sheet

High cycle times and security features ensure electricity stability and safety.

Key Features

Real-time system monitoring, remote control, OTA updates. Flexible installation options, can be wall mounted or floor mounted, reduced footprint with high space utilization.

• Nominal Voltage(Vdc) 51.2
• Work Voltage Range(Vdc) 44.8~57.6
• Nominal Capacity(Ah) 100
• Nominal Energy(kWh) 5.12
• Recommended Charge/Discharge Current (A) 50
• Max Power Continuous Charge Current (A) 75
• Max Power Continuous Discharge Current (A) 100
• Peak Power Charge/Discharge Current (A) 120 (10min)
• Recommend Charge Voltage (Vdc) 56.5

Technical Data

• Battery Type LiFePO4
• Nominal Battery Energy 5.12kWh
• Nominal Capacity 100Ah
• Nominal Voltage 51.2V
• Operating Voltage 44.8-57.6V
• Recommended C Rate 0.5C
• Recommended Charge/Discharge Current 50A
• Max. Power Charge Current 75A
• Max. Power Discharge Current 100A
• Peak Power Charge/Discharge Current 110A(15s)
• Depth of Discharge 90%
• Net Weight 54kg
• Dimension[W*D*H] 558*545*150mm
• Charging Temp. Range 0-55°C
• Discharging Temp, Range -20-55°C
• Communication CAN/RS485/RS232
• Cycle Life!" 26000 Cycles
• Estimated Protection Level IP20
• Expansion Up to 50 units in parallel
