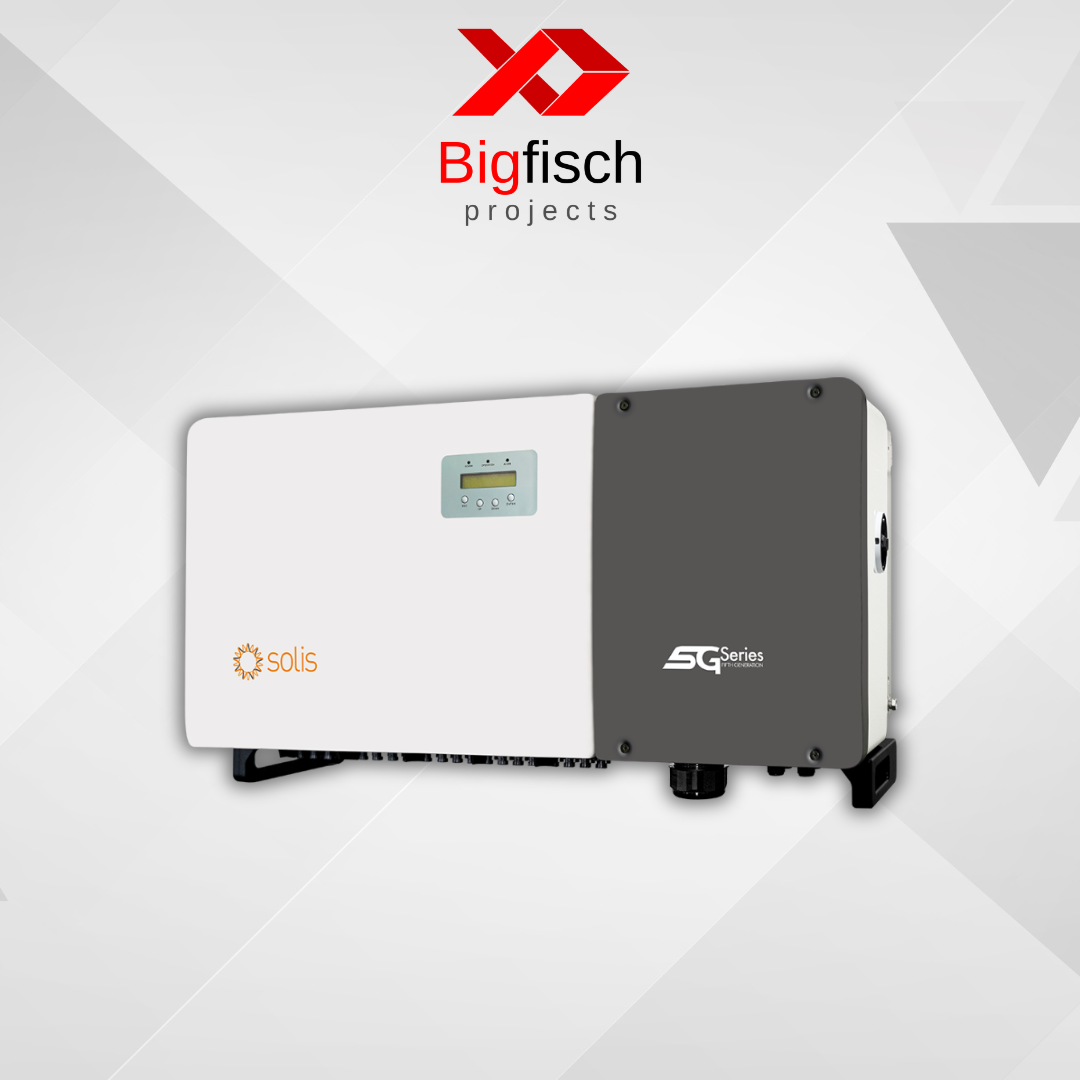

Solis 5G 110kW 3Ph Grid Tied Inverter

Solis 110kW 5G 3 Phase 10x MPPT - DC

Data Sheet

Rating: 110,000W
Phases: 3
Solis-110K-5G 3phase Inverter

Product Features

• Max. 13A per string (26A per MPPT), 150% DC overloading capability
• 10 individual MPPT, lower mismatch loss
• Efficient logic algorithm, over 99% max. Efficiency
• String monitoring, shorter O&M time
• Remote & local intelligent IV scan function
• Leakage current repression technology
• Volt-watt work mode integrated
• DC input reverse alarm
• Optional anti-PID function integrated
• Reactive power compensation function
• Integrated AFCI (DC arc-fault circuit protection)
• Type ll surge protection for DC and AC

Specifications:

• Weight: 102 kg
• Rated Power: 110,000 W
• Min PPT Voltage: 180 V
• Max PPT Voltage: 1,000 V
• DC Startup Voltage: 195 V
• DC Shutdown Voltage: 180 V
• Max Input Voltage: 1,000 V
• Max DC Power: 165,000 W
• Max AC Power (5 Minutes): 110,000 W
• Surge AC Power (1 Second): 110,000 W
• Max DC Current: 260 A
• Max DC Inputs: 20
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 32
• Euro Efficiency: 98.3 %
• Transformer: None
• MPPT Quantity: 10
• Has Integrated DC Switch: Yes
• Warranty: 5 years
