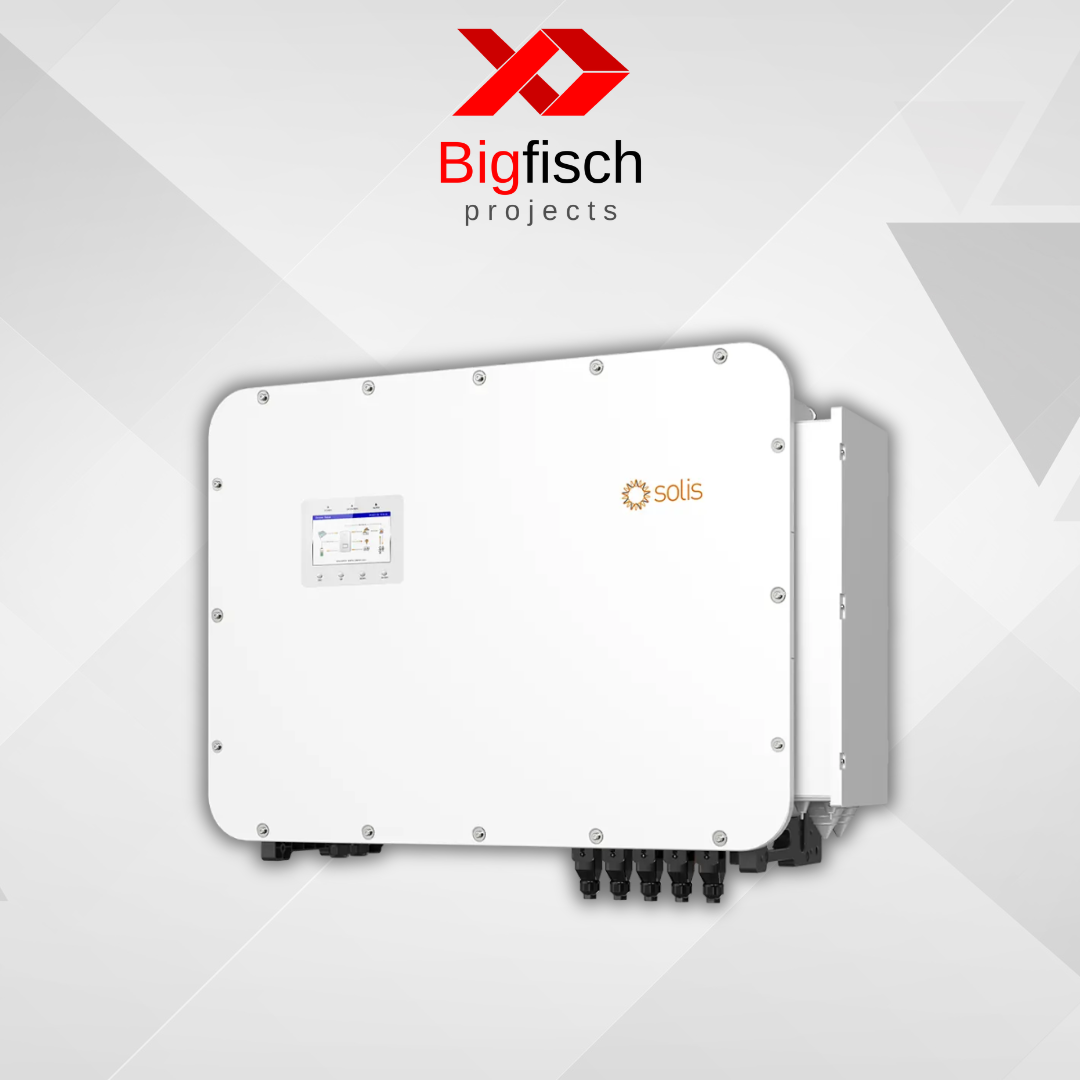

Solis S6 80kW HV 3 Ph Hybrid Inverter

Introducing the S6-EH3P(80-125)K10-NV-YD-H Series.

Data Sheet

High voltage, three-phase energy storage for C&I applications. The inverter series, which boasts a maximum charge/discharge current of 100A+100A across two independently controlled battery ports, has 10 integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery.

Whether for on or off-grid applications, the S6-EH3P(80-125)K10-NV-YD-H series supports parallel operation of up to six units, with a backup port capable of supporting 2.0 times overload for short durations.

This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Unique Features

• Supports up to 2 x rated PV input, maximizing solar energy utilization
• Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules
• Compatible with 100–314Ah battery modules, reducing overall system costs
• Supports fast battery charging with a maximum charging current of 200A
• Two independent battery ports for flexible configurations and easy capacity expansion
• Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads
• Offers flexible control for weak grid and genset-hybrid scenarios, reducing investment costs
• SolisCloud: Smart remote control, AI optimisation, and instant troubleshooting - all in one platform
• Integrates PV and storage for demand management and anti-reverse flow functions
• Provides dynamic reactive power compensation to improve grid power factor and reduce reactive power charges
• Utility bypass function allows direct grid supply to backup loads
• Patented cooling technology ensures reliable operation even under high-temperature conditions

Leading Advantages

• Supports both DC and AC coupling, for flexible retrofits and system expansions
• Ensures reliable backup power across diverse scenarios through battery reserve management
• Extends supply time for critical loads with intelligent load prioritization
• Offers a versatile three-in-one interface for seamless integration of on-grid PV, wind power, and diesel generators
• Achieves on- and off-grid transitions in less than 10ms, ensuring an uninterrupted power supply
• Supports multi-unit parallel operation up to 1.25MW (Solis STS cabinet recommended for systems over 6 units)
